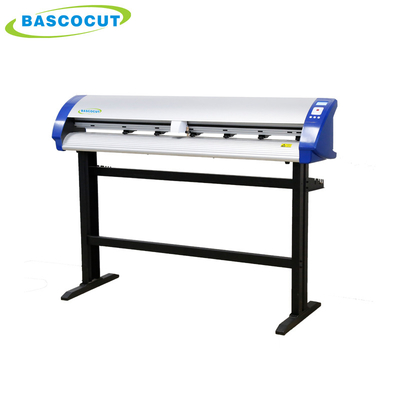

Vinyl Sticker Bascocut Vinyl Cutter Machine / 3M Reflective Film Cutting Plotter With U Plate

10 sets
MOQ
Vinyl Sticker Bascocut Vinyl Cutter Machine / 3M Reflective Film Cutting Plotter With U Plate
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Model Number: E-49XXL
Voltage: AC220V/110V,50Hz
Cache Capacity: 128Mb
Paper Feed Width: 1410mm
Cutter Pressure: 10-2000g
Cutting Width: 1300mm
Cutting Speed: 900mm/s
Driver: Stepper Motor
Cutting Length: Unlimited
Repeat Cutting: 1-500 Times
Size: 1715*324*430mm
Interface: USB/U disk/Serial Port
Software: Signmaster /Flexi/AI/ Artcut /CorelDraw
Usage: Cut Vinyl Sticker
Product name: Bascocut vinyl cutting plotter
Type: Mini Cutting Plotter Ploter
Blade: Imported Blade
Type of plotter pen: Types Diameter 11.4mm Plotter Pen
Mainboard: 128MB High-speed Cache Memory
Warranty: One year
Key words: Bascocut Reflective Film Cutter Plotter
基本情報
Model Number: E-49XXL
お支払配送条件
Packaging Details: Standard exporting package,inside is double layer carton package,outside is thick plastic package to keep dry and clean. Package dimensions: 1715*324*430 mm
Supply Ability: 2000 Set/Sets per Month
製品の説明
Product Description

Bascocut Vinyl cutter machine / 3M Reflective film


 Cutting Plotter with U dish



Features


Diamond reflective film cutting


2000g huge cutting force


Working offline with USB flash


Support professional software like Signmaster, Flexi,AI, Artcut,CorelDraw and etc

High-precision steel axes imported from Germany, ensure 10 meters paper feeding

128 Mb high-speed CACHE memory

With repeat function:0-500 times


Adjusting cutting pressure or speed during working time


Cutting by durable imported blade


With 168 MHz high-speed running CPU

Technical parameter
Model
E-49XXL
Main board
32-bit ARM 7 CPU 168 MHz,128 Mb High-speed CACHE memory
Control panel
9 industrial silicone buttons+128*64 industrial screen
Driver
High speed, big power servo motor, micro-servo driver
Maximum paper feed width
1410 mm
Maximum cutting width
1300 mm
Maximum cutting speed
900 mm/s
Cutting force
10-2000 g (digital adjustment)
Mechanical precision
0.025 mm
Repeatable precision
< ±0.025 mm
Type of plotter pen
All type diameter 11.4mm plotter pen
Plotter instruction
Compatible DM/PL,HP/GL
Interface
USB/U disk/Ethernet Port/WiFi(Optional)
Power supply
AC220V/110V,50Hz
Power consumption
<80W
Knife (Blade)
Imported hardness alloy steel blade
Operating environment
Temperature:5-35℃,Relative Humidity:30%~70%
What kind of  media can this Reflective Film Cutter Cut?

Bascocut 3M Reflective Film Cutter Plotter / Sticker Cutting Plotter/ Vinyl Cutter

Detailed Images
Related Products
Our Company

Bascocut cutting plotter showed on exhibition

We often attend the exhibitions in Guangzhou and shanghai during March and September.
Welcome to visit our booth ! We can have a face to face chat to know each other.

The exhibition we had attended before:
DPES Sign & LED Expo China 2018 - Guangzhou
The 26th Shanghai Int'l Ad & Sign Technology & Equipment Exhibition
Sign in China 2018
All in Print China 2018
CSGIA 2018/ Textile Digital Printing (China) Expo 2018

Certifications
FAQ

Q1. What payment terms do you accept?
We accept PayPal, Western Union or Bank T/T in advance.
After confirming receiving your payment, we'll arrange the shipping or production ASAP. In generally,
the shipment will be arranged within 2-8 days after receipt of your full payment.


Q2. How about your after-sales service?
We will provide you with online and offline technical support and services to ensure that you can use
our machines with ease and pleasure.
In addition, our machines have a one-year warranty, during this period we provide free repair or
replacement services for any failure caused by non-human or unnatural disasters.


Q3. Are you a factory or trading company?
We are professional cutting plotter manufacturer with independent sales department and R&D
department.


Q4. What do your machine can be applied for?
Our machines have a wide range of applications, such as Advertising production, Car decoration,
Art Grass, Wedding celebration, Die cutting industry, Traffic sign, Clothing heat transfer printing,
Wall and car sticker, Phone decoration, Leather DIY
and so on.


Q5. What kind of material can your machines cut?
Our machine can cut adhesive vinyl sticker, reflective film, heat transder film and other thickness
no more 1mm materials.

Packing & Delivery

Package:standard exporting package,inside is double layer carton package,outside is thick plastic package to keep dry and clean.
Delivery : by air/by sea(optional)
